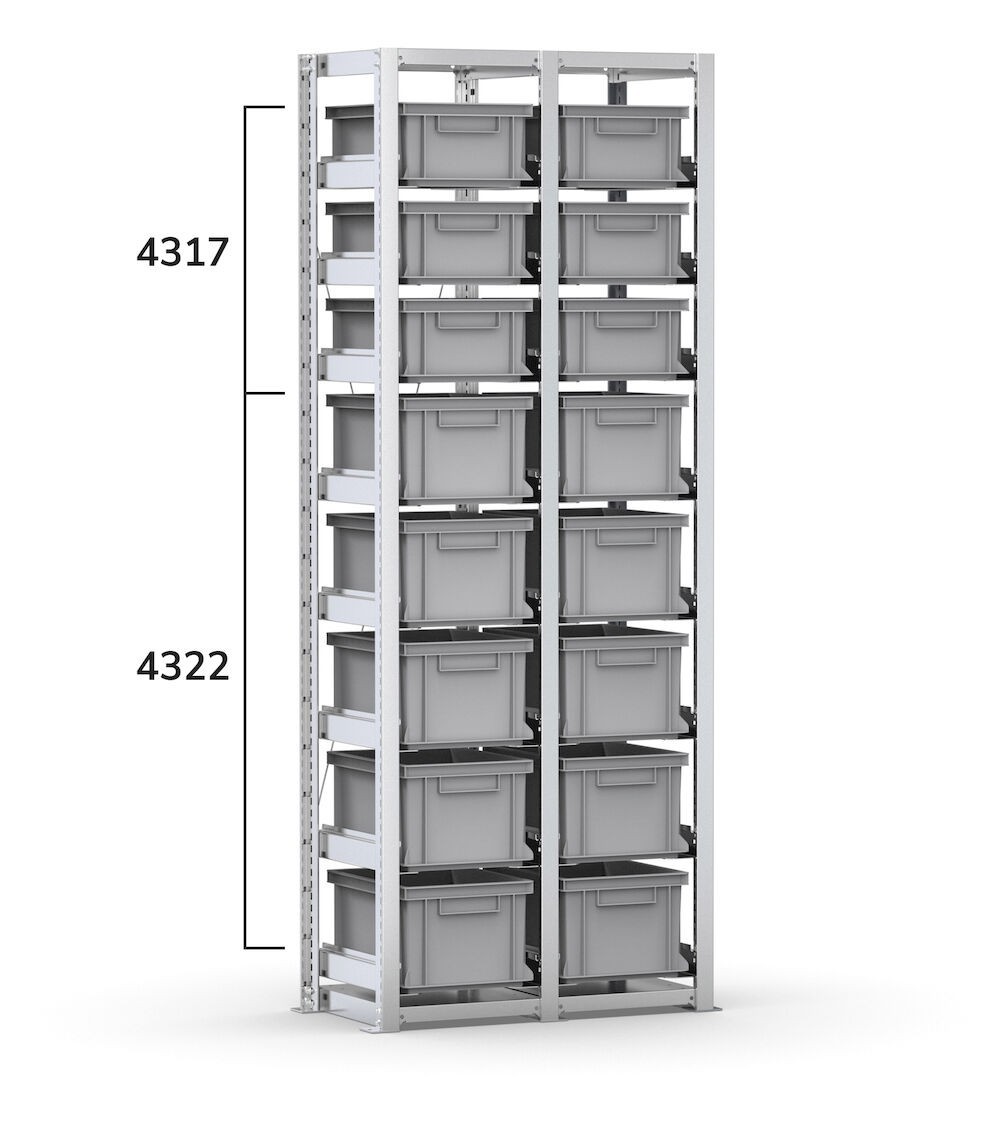

Scaffale con 16 cassette Euro Box 400x300 mm, L810 x P421 x H2003 mm
  • Scaffale con 16 cassette Euro Box 400x300 mm, L810 x P421 x H2003 mm

Shelving with 16 Euro Box 400x300 mm, L810 x D421 x H2003 mm

This container shelving with slides is designed for the organised storage of all the work material stored in Euro Box Classic. The solution includes 16 boxes, 10 size 4322 and 6 size 4317, positioned on slides that provide stability and a fluid, controlled extraction. For greater safety in picking material, stops can be installed in the front part of the slides that block the box at the end of the run preventing it from falling.
The shelving with slides is made of galvanised steel with uprights and storage surfaces that make the entire frame more solid and sturdy. The system is also modular and expandable. It can be easily expanded with additional bays to exponentially increase the storage space available.

The container stops must be purchased separately.

Dim. (mm): 810 x 421 x 2003 h No. of slides (RH and LH): 16 + 16
Load capacity for two slides (kg): 50 Containers:
6 pcs x polypropylene Euro Box, size 4317, silver grey;
10 pcs x polypropylene Euro Box, size 4322, silver grey
Container load capacity (kg): 30 / 30 Container volume (l): 15.5 / 19.9
Material: Galvanised sheet metal Supplied: Unassembled
