Scaffale per contenitori a bocca di lupo mis.4/4A5, 7 ripiani, L1057 x P521 x 2016 mm
  • Scaffale per contenitori a bocca di lupo mis.4/4A5, 7 ripiani, L1057 x P521 x 2016 mm
  • Scaffale per contenitori a bocca di lupo mis.4/4A5, 7 ripiani, L1057 x P521 x 2016 mm

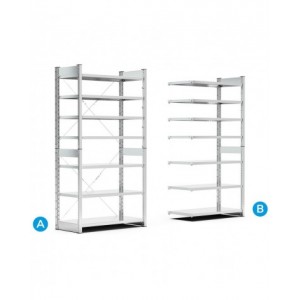

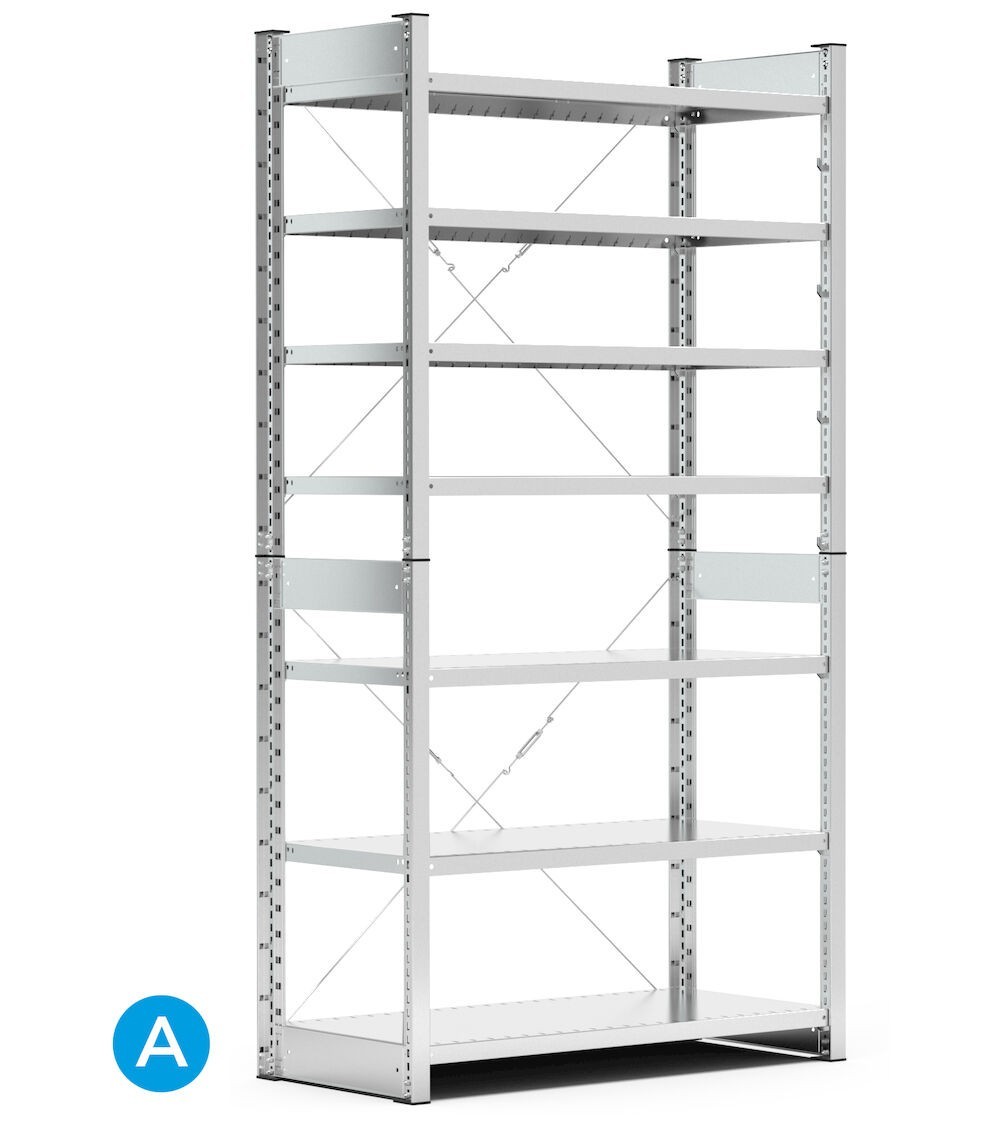

7-shelf rack for hopper-type size 4/4A5 bins, W1057 x D521 x 2016 mm

The empty bin rack with shelves is designed to accommodate 21 Picking Box Air or Classic bins size 4/4A5. This solution has 7 slotted shelves with a depth of 500 mm and a load capacity of 120 kg which can accommodate a maximum of 3 hopper-type containers. The modular structure allows the shelving to be expanded in width to create organised warehouses that can be added to at any time. The rack is made of solid galvanised sheet metal and can be easily and quickly assembled thanks to the interlocking assembly system.

It is mandatory to fix the shelving to the wall or floor.

Picking Box Air or Classic bins size 4/4A5 must be purchased separately.

Dim. (mm): 1057 x 521 x 2016 h No. of shelves: 7
Shelf dim. (mm): 1000 x 500 x35 h Shelf load capacity (kg): 120
Suitable for:
12 Picking Box Air plastic storage bins FPB0004R051LQ, size 4 (335 x 508 x 203 h mm);
9 Picking Box Air plastic storage bins FPB04A5R051LQ, size 4A5 (336 x 507 x 304 h mm);
12 Picking Box Classic plastic storage bins FAXPB0004L05132, size 4 (278 x 445 x 186 h mm);
9 Picking Box Classic plastic storage bins FAXPB04A5L05132, size 4A5 (278 x 445 x 286 h mm)
Material:
Galvanised sheet metal (rack/shelves)
Supplied:Disassembled



Navigazione sicura tramite certificati SSL



Consegna veloce in 10 giorni lavorativi



Pagamenti sicuri

ST1059

Data sheet

Shelf depth
500 mm
Shelf height
2000 mm
