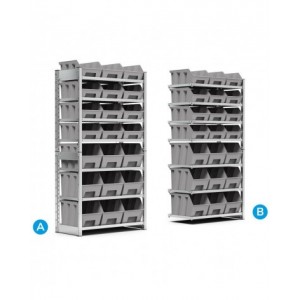

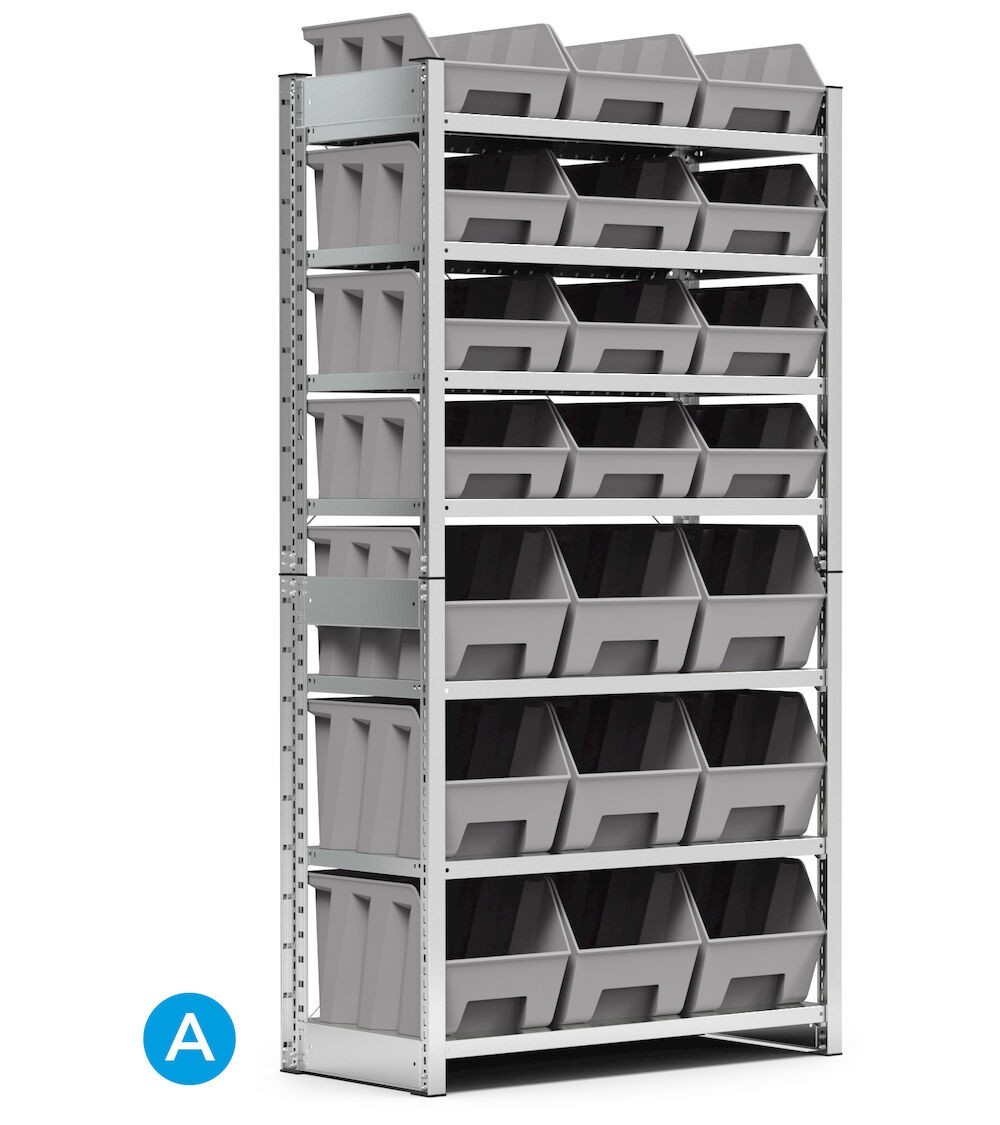

7-shelf rack for bins, 21 hopper-type bins size 4/4A5, W1057 x D521 x 2111 mm

The bin rack with shelves is a modular system for creating organised warehouses that can be expanded at any time. This solution consists of 7 slotted shelves with a load capacity of 120 kg set up with 21 Picking Box Air bins. The size 4 and 4A5 bins have a hopper-type opening to ensure visibility and facilitate the extraction of the material without removing the container from the shelving.
The galvanised sheet metal rack features an interlocking assembly system and can be expanded in width with shelves of the same composition or, for example, with solutions with shelves and drawers.

It is mandatory to fix the shelving to the wall or floor.

Dim. (mm): 1057 x 521 x 2111 h	No. of shelves: 7
Shelf dim. (mm): 1000 x 500 x35 h	Shelf load capacity (kg): 120
Picking Box Air bins: 12pcs x FPB0004R051LQ, size 4 (335 x 508 x 203 h) 9pcs x FPB04A5R051LQ, size 4A5 (336 x 507 x 304 h)	Bins load capacity (kg): 12pcs x 39 9pcs 39
Bins volume (l): 12pcs x 28 9pcs 42	Material: Galvanised sheet metal (rack/shelves) Polypropylene, telegrey 1 (bins)
Supplied: Disassembled
