• Pack
Scaffale porta contenitori, 6 ripiani, 18 contenitori a bocca di lupo mis.4A5, L1057 x P521 x 2131 mm
  • Scaffale porta contenitori, 6 ripiani, 18 contenitori a bocca di lupo mis.4A5, L1057 x P521 x 2131 mm
  • Scaffale porta contenitori, 6 ripiani, 18 contenitori a bocca di lupo mis.4A5, L1057 x P521 x 2131 mm

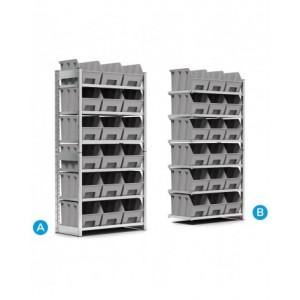

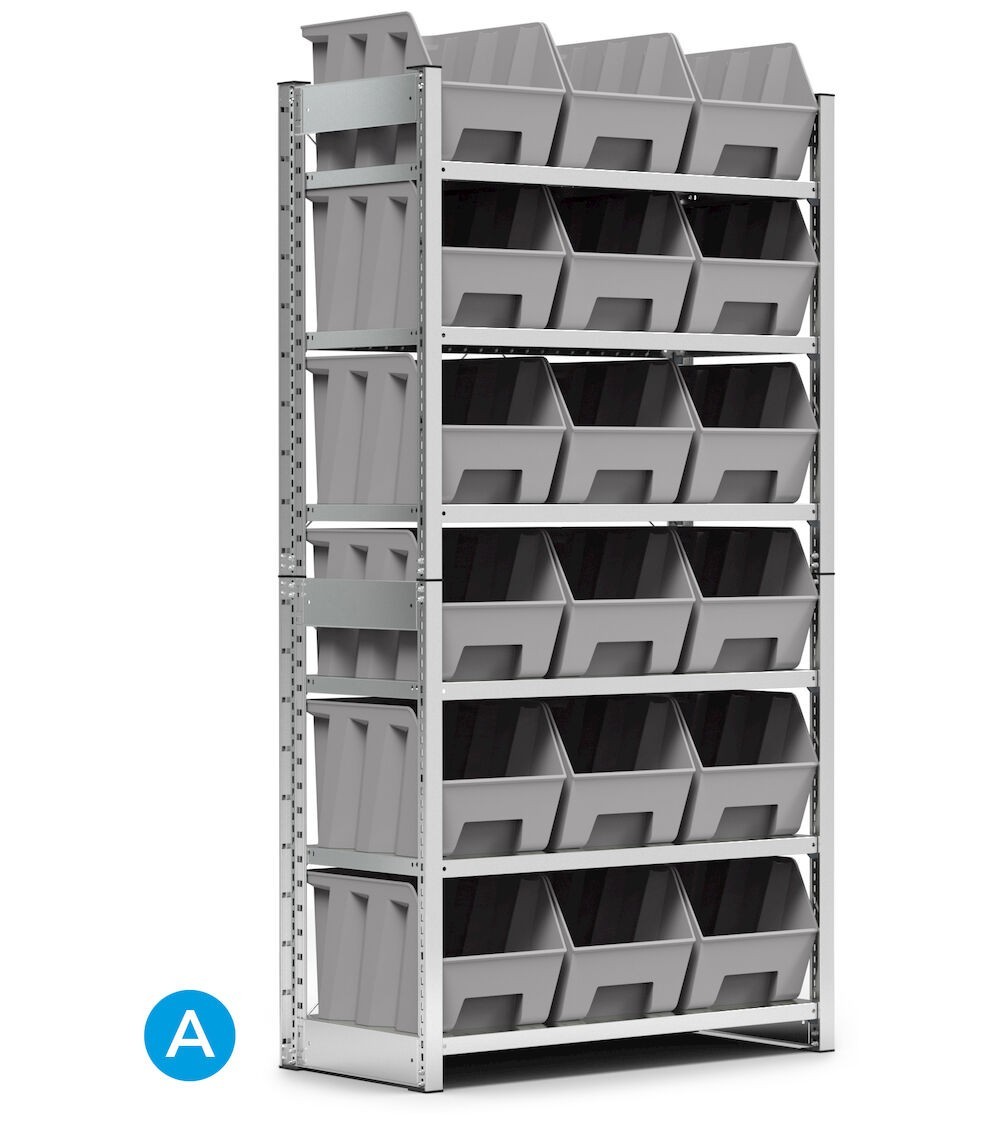

6-shelf bin rack, 18 hopper-type bins size 4A5, W1057 x D521 x 2131 mm

The bin rack with shelves is a modular system for creating organised warehouses that can be expanded at any time. This solution consists of 6 slotted shelves with a load capacity of 120 kg set up with 18 Picking Box Air bins. The size 4A5 containers have a hopper-type opening to ensure visibility and facilitate the extraction of the material without removing the container from the shelving.
The galvanised sheet metal rack features an interlocking assembly system and can be expanded in width with shelves of the same composition or, for example, with solutions with shelves and drawers.

It is mandatory to fix the shelving to the wall or floor.

Dim. (mm): 1057 x 521 x 2131 h No. of shelves: 6
Shelf dim. (mm): 1000 x 500 x35 h Shelf load capacity (kg): 120
Picking Box Air bins:
18pcs x FPB04A5R051LQ, size 4A5 (336 x 507 x 304 h)		 Bin load capacity (kg):
18pcs x 39
Bin volume (l):
18pcs x 42		 Material:
Galvanised sheet metal (rack/shelves)
Polypropylene, telegrey 1 (bins)
Supplied: Disassembled

This pack contains



Navigazione sicura tramite certificati SSL



Consegna veloce in 10 giorni lavorativi



Pagamenti sicuri

ST1053

Data sheet

Shelf depth
500 mm
Shelf height
2100 mm
