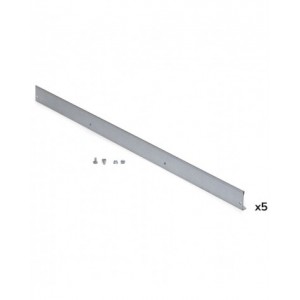

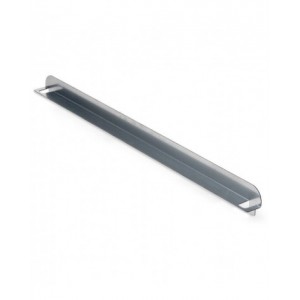

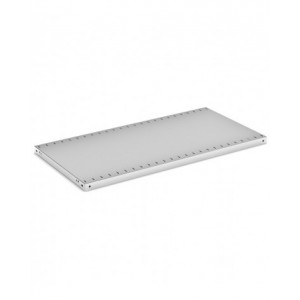

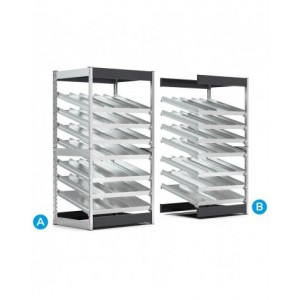

Kanban racks with dividers improve the supply and availability of the materials required during work. These racks allow having the necessary screws and small parts always available at the workstation since once the contents of the first container or box have been used, the next one is already available and ready for use. The 7 slotted shelves complete with box-stop edge have a depth of 500 mm and can be installed with an inclination between 5 and 30°. This feature is important in Kanban systems: once the empty container has been extracted, in fact, gravity will make the full one slide to the front without the operator having to carry out further operations. Each shelf has a load capacity of 120 kg and is equipped with 40 mm high separators. The galvanised sheet metal structure is solid and sturdy thanks to the strengthening crosspieces installed in the upper and lower parts. Set up for installing wheels, this solution can be transformed into a practical rack on wheels that can be easily moved inside the company.
It is mandatory to fix the shelving to the wall or floor.

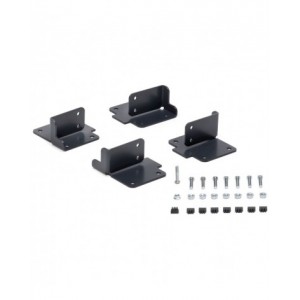

The kit of 4 wheel plates must be purchased separately.

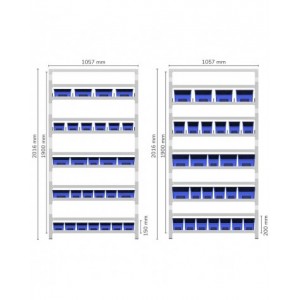

| Dim. (mm): 1057 x 521 x 2016 h | Shelf load capacity (kg): 120 |
| Shelf inclination: from 5 to 30° |

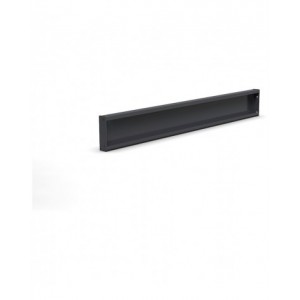

Material: Galvanised sheet metal (rack/separators) Painted sheet metal, RAL 7016 (strengthening crosspiece) |
| Supplied: Disassembled |
