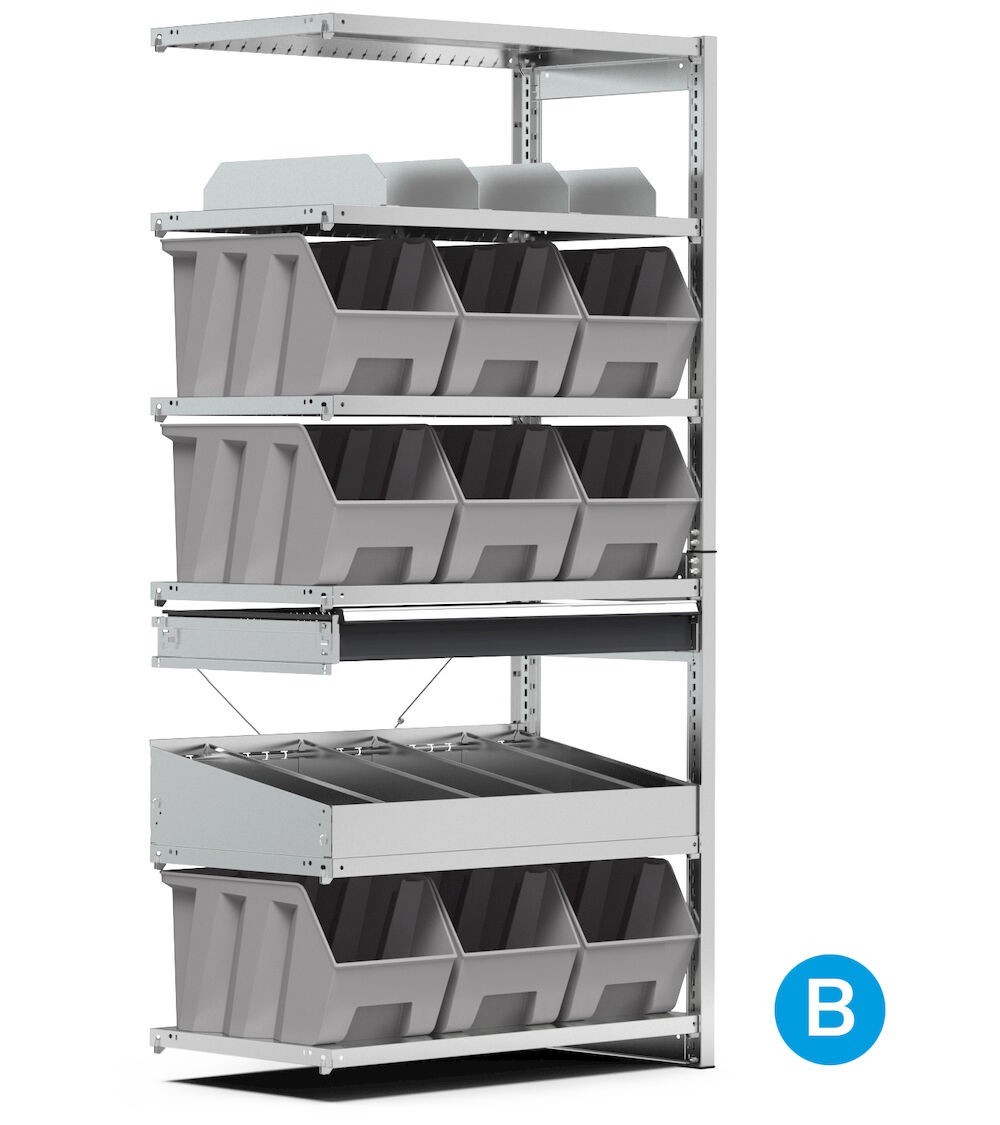

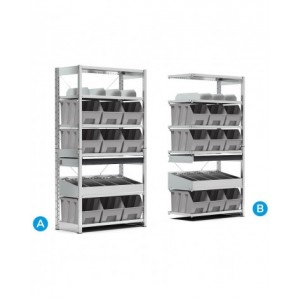

The additional container rack with shelves is used to expand existing shelving. It has six slotted shelves with a load capacity of 120 kg which have 100 mm high separators, with a pair of edge strips with trapezoidal dividers or Picking Box Air hopper-type containers, size 4A5. In the lower part of the rack there is an 88% simple pull-out drawer with a load capacity of 50 kg. The rack features an interlocking mounting system that makes assembly quick and easy without the use of tools.
It is mandatory to fix the shelving to the wall or floor.
| Dim. (mm): 1028 x 521 x 2011 h | Drawer pull-out: 88% |
| Shelf load capacity (kg): 120 | Drawer load capacity (kg): 50 |
| Bins Picking Box Air: 9pz x FPB04A5R051LQ, size 4A5 (336 x 507 x 304 h) |
Load capacity bin (kg): 39 |
| Volume bin (l): 42 |
Material: Galvanised sheet metal (rack) Painted sheet metal, anthracite grey RAL 7016 (drawer) Polypropylene, telegrey 1 (bins) |
| Supplied: Disassembled |
