• Pack
Scaffale con 9 contenitori mis. 4A5 e 6 ripiani, L1057 x P521 x H2011 mm
  • Scaffale con 9 contenitori mis. 4A5 e 6 ripiani, L1057 x P521 x H2011 mm
  • Scaffale con 9 contenitori mis. 4A5 e 6 ripiani, L1057 x P521 x H2011 mm
  • Scaffale con 9 contenitori mis. 4A5 e 6 ripiani, L1057 x P521 x H2011 mm

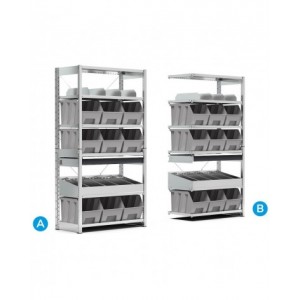

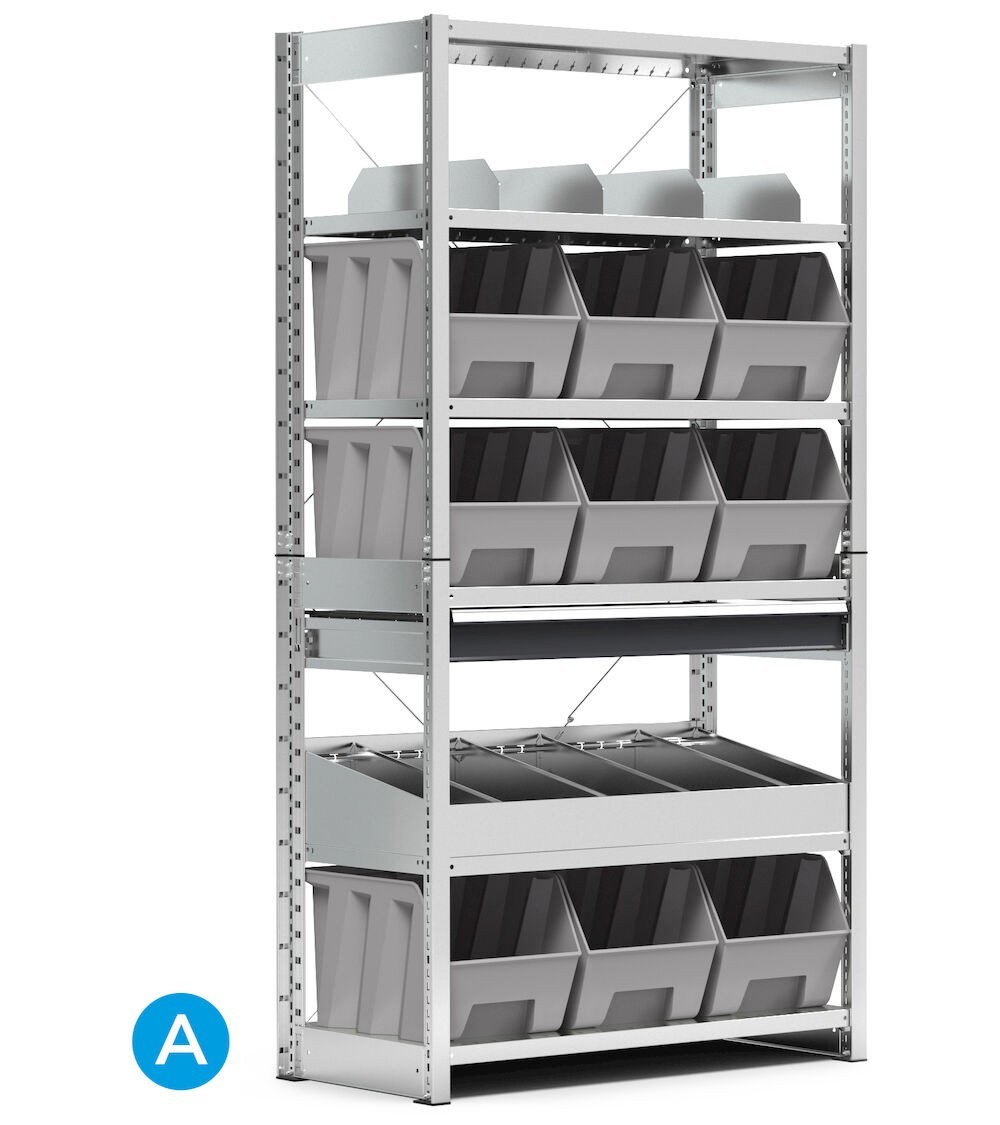

Rack with 9 bins, size 4A5 and 6 shelves, W1057 x D521 x H2011 mm

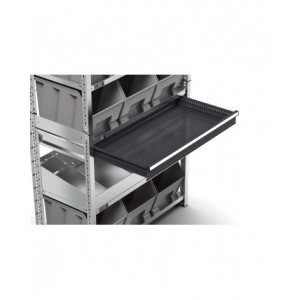

This bin rack with shelves features three different solutions for organising small parts, screws, components and tools. The work material, in fact, can be stored on the various shelves set up with 100 mm high separators, with a pair of edge strips with trapezoidal dividers or with Picking Box Air hopper-type bins, size 4A5. A further containment solution is represented by the 88% simple pull-out drawer with a 50 kg load capacity positioned in the lower part of the shelving. The rack with containers is solid and sturdy thanks to the two cross braces installed in the rear part. Assembly is simple and quick thanks to the interlocking system which does not require the use of tools and equipment for installation.

It is mandatory to fix the shelving to the wall or floor.

Dim. (mm): 1057 x 521 x 2011 h Drawer pull-out: 88%
Shelf load capacity (kg): 120 Drawer load capacity (kg): 50
Bins Picking Box Air:
9pz x FPB04A5R051LQ, size 4A5 (336 x 507 x 304 h)
Load capacity bin (kg):
39
Volume bin (l):
42
Material:
Galvanised sheet metal (rack)
Painted sheet metal, anthracite grey RAL 7016 (drawer)
Polypropylene, telegrey 1 (bins)
Supplied: Disassembled



Navigazione sicura tramite certificati SSL



Consegna veloce in 10 giorni lavorativi



Pagamenti sicuri

ST1022

Data sheet

Shelf depth
500 mm
Shelf height
2000 mm
